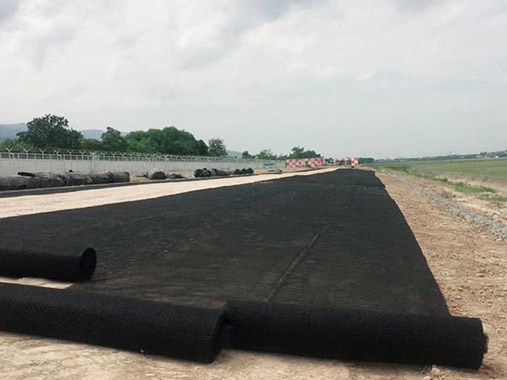

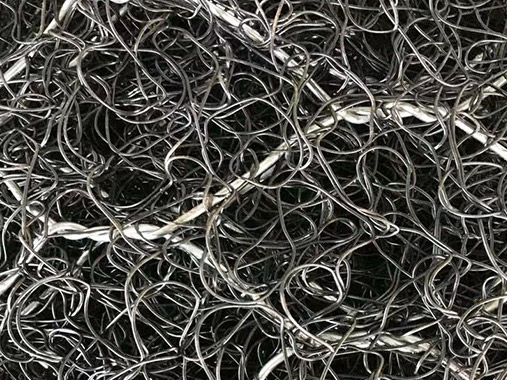

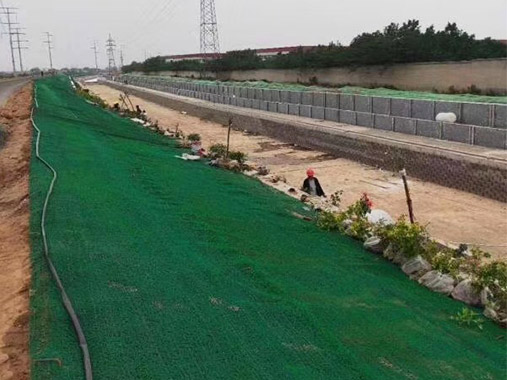

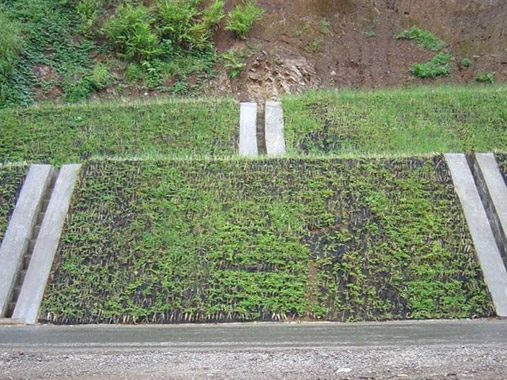

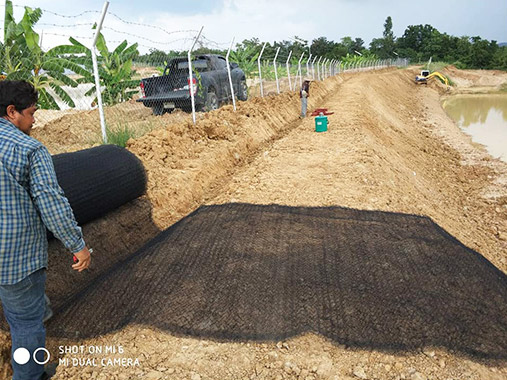

3D Polymat mesh is a Three-dimensional structure manufactured.From three polypropylene meshes that have been extruded and sub-sequently orientated. The mat has a tensile strength of 35 kN/m and a low unit weight which makes it ideally suited for installation on steep slopes.

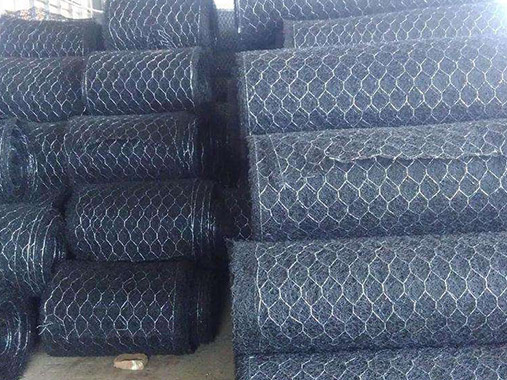

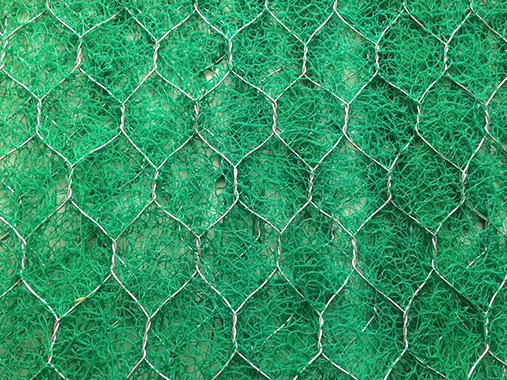

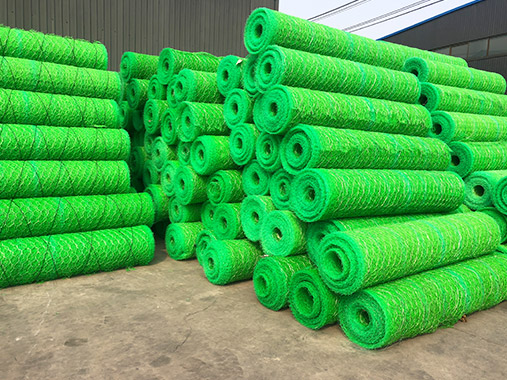

We can supply Polymat ready attached to 25m rolls of rock netting, or separately.
| GEOMAT PROPERTIES | ||||
| polymer | Polypropylen (PP) | |||
| Masse per enhet areal(g/㎡) | 500 | 600 | 500 | 600 |
| Smeltepunkt(℃) | 150 | |||
| Tetthet（kg/m³） | 900 | |||
| Uv-bestanding | stabilisert | |||
| REINFORCEMENT PROPERTIES | ||||
| Raw material | Hexagonal double twist metal mesh | |||
| Protection of metallic wire | complying with requirements | |||
| Properties of protection of metallic wire | Class A | |||
| Mesh type( mm) | 60*80 | 80*100 | 60*80 | 80*100 |
| Wire thickness EN 10218( mm) | 2.2 | 2.5 | 2.2/3.2 | 2.5/3.5 |
| PHYSICAL CHARACTERISTICS | ||||
| Total thickness EN 9863-1(mm) | 12mm | |||
| Void ratio (%) | 90% | |||
| Tensile strength MD (Machine Direction) | 35kN/m | |||
| Elongation at max load MD(%) | 5% | |||
| Roll dimensions | 2M*25M | |||
| Other specifications can also be customized processing. | ||||
