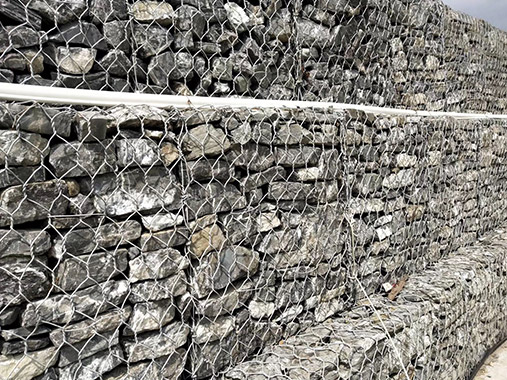

Gabion Cages:the gabion is a cage, cylinder, or box filled with rocks, concrete, or sometimes sand and soil for use in civil engineering, road building, military applications and landscaping.
Advantages of Gabion cages Structures

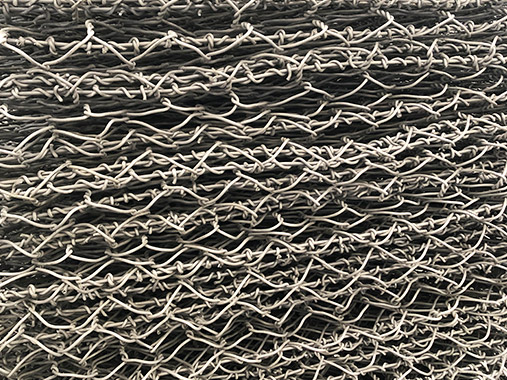

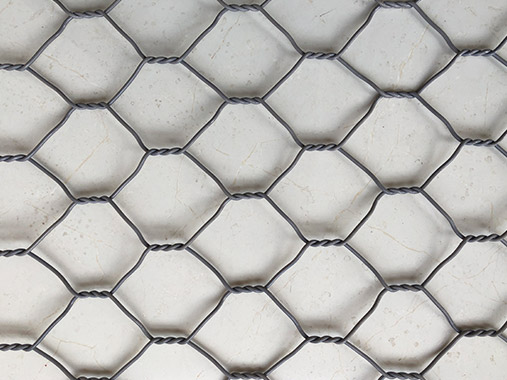

Flexibility: The double twisted hexagonal wire mesh is resistant to large weights. It also adapts itself to some displacement of the structure without breaking and cracking.
Durability: Galvanized wire mesh has a very long life. If PVC is coated, the service life is longer. In addition, double-twisted wire, even in the event of a single wire break, such as mesh wire braids do not dissolve.
Auto-Drainage: When gabion are filled with stone and rock, they have a porous structure. The porous structure does not retain water behind it, auto-drains and prevents the formation of water force.
Economy: Gabion structures are very economical compared to traditional structures. In addition, gabion structures require very little maintenance. (Lifetime economy)
Force: Gabion structures can absorb huge amounts of energy and perform smoothly for decades even under very large natural stresses.
| Mesh Sizes （mm） |
Gabion dimensions and volumes | Wire diameter | ||||
| L(M) | W(M) | D(M) | Capacity(m³) | Number of diaphragm | ||
| 60*80 80*100 100*120 |
4 | 2 | 0.3 | 2.4 | 3 | Mesh Wire: 2.0mm,2.2mm 2.5mm, 2.7mm,3.05mm. 2.0/3.0mm,2.2/3.2mm 2.5/3.5mm,2.7/3.7mm. selvedge wire: 2.5mm,2.7mm 3.2mm,3.4mm,3.8mm 2.5/3.5mm,2.7/3.7mm 3.2/4.2mm,3.4/4.4mm lacing wire: 2.0mm,2.2mm 2.0/3.0mm,2.2/3.2mm |
| 6 | 2 | 0.3 | 3.6 | 5 | ||
| 4 | 2 | 0.23 | 1.84 | 3 | ||
| 6 | 2 | 0.23 | 2.76 | 5 | ||
| 2 | 1 | 0.5 | 1 | 1 | ||
| 3 | 1 | 0.5 | 1.5 | 2 | ||
| 4 | 1 | 0.5 | 2 | 3 | ||
| 2 | 1 | 1 | 2 | 1 | ||
| 3 | 1 | 1 | 3 | 2 | ||
| 4 | 1 | 1 | 4 | 3 | ||
| Other specifications can also be customized processing. | ||||||
