Road mesh is a unique bi-directional high strength steel reinforcement used in new or rehabilitated asphalt pavements to provide solutions for reflective cracking,asphalt fatigue and surface rutting.

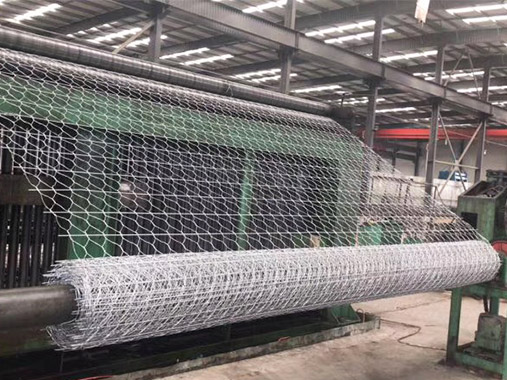

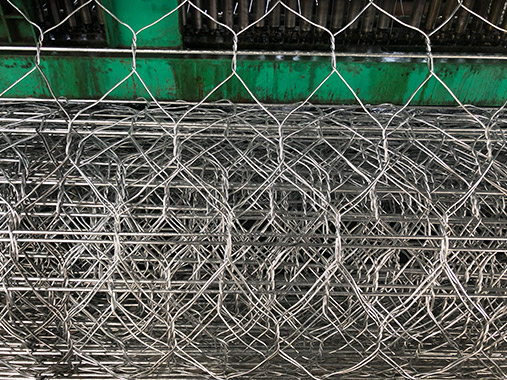

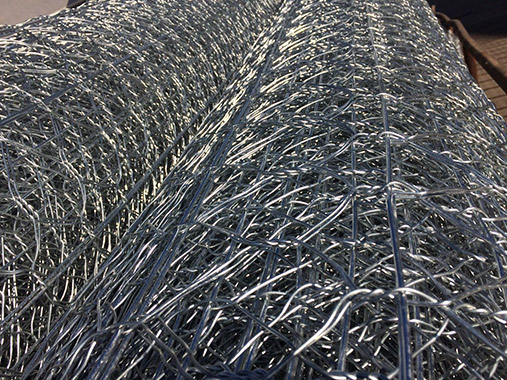

Road mesh is proven to help increase the duration of maintenance cycles in asphalt pavements around the world.It is manufactured from double twist hexagonal woven wire mesh with a transverse rod woven into the mesh.
Road mesh offers high tensile strenght at low strain,together with a geometry that provides excellent aggregate interlock to optimize load transfer and shear resistance.Developed specifically for flexible pavement reinforcement,road mesh can be introduced into the upper bound layers of the pavement sturcture for rehabilitation or new build construction.Developed intitally to inhibit reflective cracking in the asphalt layers,research in the USA and Europe has shoun road mesh to enhance the working life of hte whole pavement structure.
| Mesh Sizes （mm） |
Road mesh dimensions | Material | Wire diameter(mm) | |
| Length(M) | Width(M) | Hot dipped galvanized, Galfan |
Mesh Wire: 2.0mm,2.2mm,2.5mm. Reinforcement bar: 3.4mm,3.8mm |
|
| 80*100 | 25–100 | 1–4 | ||
| 100*120 | 25–100 | 1–4 | ||
| Other specifications can also be customized processing. | ||||
