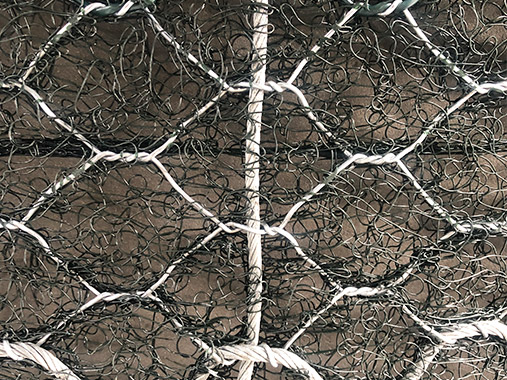

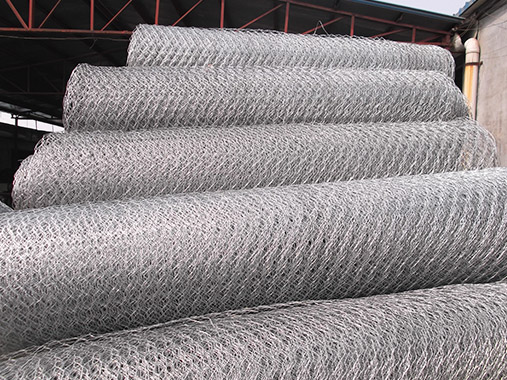

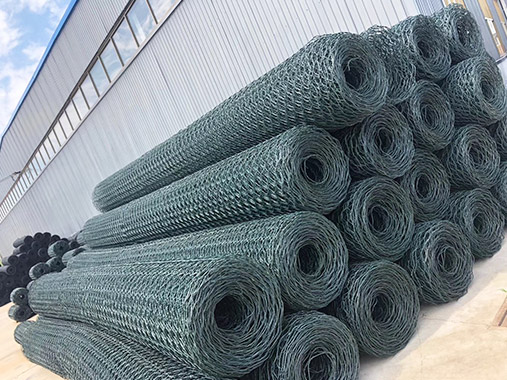

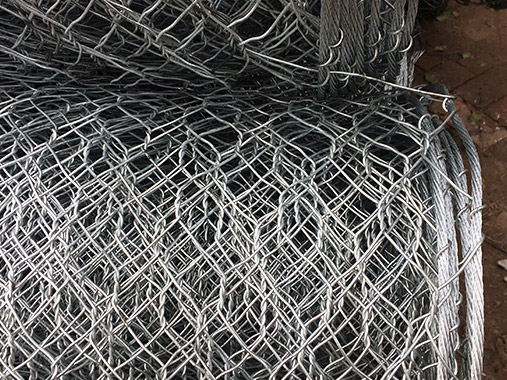

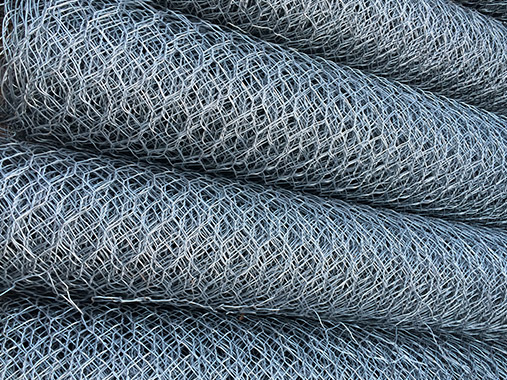

Rockfall Netting is made of a continuous roll of “triple twisted” mesh which can be made in different mesh and wire combinations to suit hte type of rock beingsupported.unlike chainlink mesh the strong “triple twisted”mesh will not unravel if one of the mesh wires should break.lndividual rolls are wired together to form a curtain to control the fall of loose rock and to encourage stabilisation of the rock face by promoting vegetation.

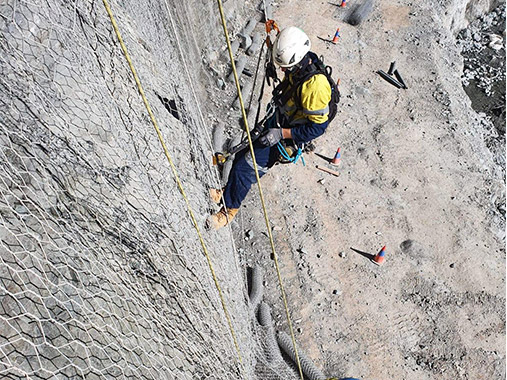

Rockfall Netting is proven to offer robust, long lasting and cost-effective rockfall protection. On moderately steep slopes, or those where some vegetation may grow, the mesh should be kept as close to the slope as possible. On very steep and/or near vertical slopes, the net must be anchored at the top of the cliff, and left unanchored at the bottom, thereby allowing rocks and debris to fall into a collection ditch at the toe of the slope
| Mesh Sizes （mm） |
Gabion dimensions | Material | Wire diameter(mm) | |
| Length(M) | Width(M) | Hot dipped galvanized, Galfan , Zinc and PVC Coated |
Mesh Wire: 2.5mm,2.7mm,3.05mm. 2.5/3.5mm,2.7/3.7mm selvedge wire: 3.2mm,3.4mm,3.8mm 3.2/4.2mm,3.4/4.4mm |
|
| 60*80 | 25–100 | 1–4 | ||
| 80*100 | 25–100 | 1–4 | ||
| 100*120 | 25–100 | 1–4 | ||
| Other specifications can also be customized processing. | ||||
Rockfall Netting Advantages:
Does not unravel if wire breakage occurs making it cost effective with low maintenance requirements
Flexible and versatile to match existing slope and rock profiles
Different levels of coating protection for durability in a wide range of environments
Does not inhibit regrowth of vegetation
No overlapping mesh on lateral connections means fast installation and minimal material wastage
